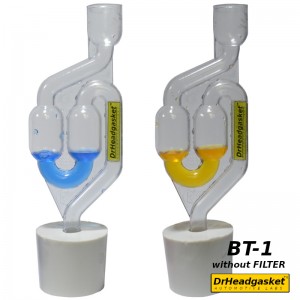

BT-1 BASIC Tester is the simplest and cheapest combustion leak tester on the market but still a quite effective tool for detecting medium combustion leaks in engines with liquid cooling systems. Bear in mind that the tester will not detect small leaks, the sensitivity is too low.  Also, the lack of filtering could lead to false test results, the test fluid might not change colour due to possible contaminants.

FEATURES:

  • 99.9% accuracy with the filter connected to the tester
  • better sensitivity with the red test fluid
  • easy to use, fast and inexpensive, great for DIY
  • compatible with radiators and expansion tanks, PETROL/DIESEL/LPG engines
  • start the engine, connect the tester to the cooling system and wait up to 5 minutes for the result.

HOW DOES IT WORK?

If a combustion leak is present, a small amount of exhaust gases is leaking into the cooling system. These gases can be detected with this simple tester.

BLUE OR RED TEST FLUID, WHAT IS THE DIFFERENCE?

Sensitivity is the main difference between blue and red fluid. Diesel engines have different exhaust gas composition (before catalyzer), lower level of co2, higher nitrates and carbon.

The blue fluid is not suitable for DIESEL engines as it changes colour to GREEN, making it more confusing with the interpretation of the test result.  The red liquid should be used instead. In diesel engines, the red fluid simply performs better.



IMPORTANT RULES TO AVOID FALSE TEST RESULT:


BEFORE USE, ALWAYS FLUSH THE TESTER WITH FRESH TEST FLUID!!!

EXTRA FREE bottle INCLUDED ( BT-3 Tester only)

TYPE OF PROBLEM:

BT-1

no FILTER

BT-3

with FILTER



SMALL COMBUSTION LEAK

not visible bubbling (1)

NO

The tester WILL NOT detect anything due to lack of rubber pump.  The pump is crucial in detecting small leaks,  atomizer helps to dissolve more gas in the test fluid. Testers with rubber pumps and atomizers are 2-3 times more sensitive.

NO

The tester WILL NOT detect anything due to lack of rubber pump.  The pump is crucial in detecting small leaks,  atomizer helps to dissolve more gas in the test fluid. Testers with rubber pumps and atomizers are 2-3 times more sensitive.

MEDIUM COMBUSTION LEAK

 visible bubbling (2)

YES

Only if no other additives in the coolant, e.g. "sealers in a bottle". Not suitable for coolants with other additives. Additives could falsify the test result!

 YES

Compatible with all types of coolants and additives. The filter will block all possible contaminants


BIG COMBUSTION LEAK

vigorous bubbling (3)

NO

The test result could be false due to possible contaminants induced by bubbles.

YES

The filter will block all fumes and contaminants.


TESTING WITH "Seals in a bottle" IN THE COOLING SYSTEM OR OTHER UNKNOWN ADDITIVES (4)

NO

 The test result could be false due to additives in the cooling system.

Not suitable for coolants with other additives.



YES

The filter will block all contaminants.

Compatible with all types of coolants, resistant to any additives.




PROS CONS


PROS:

- very cheap

- the tester uses just 6ml of fluid per test. 3ml for flushing + 3ml for the test.





CONS:

- 50/50 ACCURACY, possible false test results due to lack of filtering

 - not suitable for detecting small leaks - lack of pump and atomizer

- for DIY use, not suitable for professional use


 PROS:

- very cheap

- 99.9% Accuracy - Immune to all contaminants

- safe to use with all types of coolant and additives, including "seal in the bottle."

- the tester uses just 6ml of fluid per test. 3ml for flushing + 3ml for the test.


CONS:

 - not suitable for detecting small leaks - lack of pump and atomizer

- for DIY use, not suitable for professional use



BT-1

no FILTER

BT-3

with FILTER


IMPORTANT NOTE!!! :  The white rubber bung fits a wide range of cars anyway before placing an order, you have to check if it fits the coolant's inlet in your car.

The rubber bung diameter: (narrow end: 37mm, wide end: 41mm)

If you require bigger or smaller bung, our Advanced Testers fit a much wider range of cars, tractors and other machines.

BT- 1 BASIC COMBUSTION LEAK DETECTOR / BLOCK SNIFF TESTER /  HEAD GASKET TESTER KIT for PETROL/DIESEL/LPG Engines - DIY
